Machinery

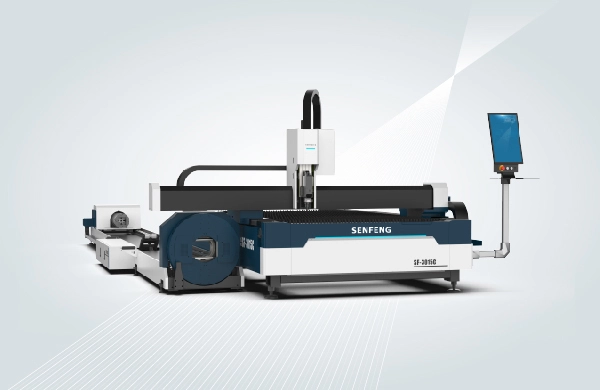

CNC Laser Sheet & Pipe Cutting Combo Series
Model: SF-3015C
Brand: SENFENG
Type: Open Type Sheet and Tube Combo C Series
Overview
The SF-3015C is a dual-function precision laser cutting system that handles both sheets and tubes — eliminating the need for separate machines and reducing setup time.
Powered by a 6000W fiber laser, it cuts through MS, SS, Copper, and Aluminium with exceptional edge quality and speed.
Whether you’re cutting intricate sheet profiles or processing round and square tubes, the SF-3015C delivers consistent, high-precision results.
Key Specifications
| Parameter | Details |
|---|---|
| Working Area | 3050mm × 1530mm |
| Laser Power | 6000W |
| Materials | MS, SS, Copper, Aluminium |
| Tube Cutting | Round Tubes (Φ20–220mm) & Square Tubes |
| Chuck Type | Self-centering pneumatic chuck |
| Max Speed | 100 m/min (No-load) |
| Machine Type | Open Type Sheet & Tube Combo C Series |
Capabilities
Sheet Cutting:
Working area of 3050mm × 1530mm
Handles intricate geometries and tight tolerances
Clean, burr-free edges
High-speed cutting for production efficiency
Tube & Pipe Cutting:
Round tubes from Φ20mm to Φ220mm
Square tubes and other profiles
Self-centering pneumatic chuck for secure holding
Accurate cuts on curved surfaces
Material Versatility:
Mild Steel (MS)
Stainless Steel (SS)
Copper
Aluminium
CNC Bending Machine
Model: BDE10032
Brand: SENFENG
Type: Tandem CNC Press Brake
Overview
The BDE10032 is a Tandem CNC Press Brake designed for precision bending of both standard and ultra-long workpieces.
With 1000kN bending force per machine and a 3200mm × 2 bending length, it can operate as a single machine for standard jobs or in dual-machine linkage mode for exceptionally long components.
The 5-axis linkage CNC system with a 10.1-inch color touch screen ensures precise, repeatable bends — while mechanical deflection compensation guarantees consistent angles across the entire workpiece.
Key Specifications
| Parameter | Details |
|---|---|
| Bending Force | 1000 kN (per machine) |
| Bending Length | 3200mm × 2 |
| Control System | 5-axis linkage CNC with 10.1″ color touch screen |
| Compensation | Mechanical deflection compensation worktable |
| Machine Type | Tandem CNC Press Brake |
Capabilities
Single-Machine Operation:
Standard bending jobs up to 3200mm
1000kN bending force
5-axis CNC precision
Ideal for brackets, enclosures, and standard components
Dual-Machine Linkage Mode:
Ultra-long workpieces up to 6400mm (3200mm × 2)
Synchronized operation for consistent bends
Ideal for structural components and long profiles
Precision Control:
5-axis linkage for complex bend sequences
10.1″ color touch screen for easy programming
Mechanical deflection compensation for consistent angles
